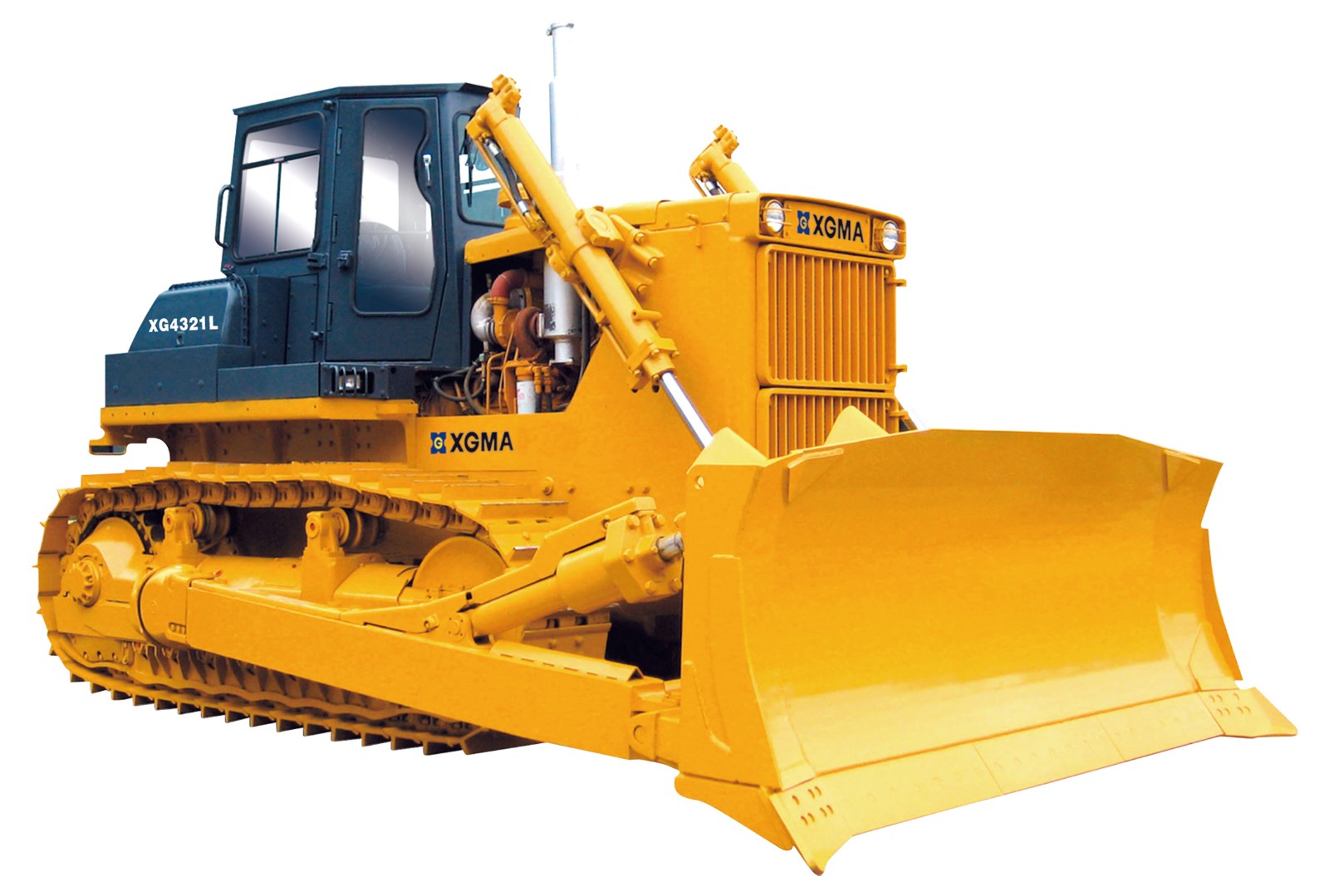

Bulldozer

Bulldozer

  • Operating Weight: 17100-34390kg Rated Power: 131-235kw

Product Features

1.Equipped with a hydraulic drive system and an advanced structure, which provides reliable performance and convenient and flexible operation. 2.Applied with the travel system of walking beam suspension design, applicable to uneven and bumpy working site. 3.Equipped with straight-tilting shovel as standard as well as U-shovel and angle shovel as options, all provided with well durable blade. 4.Optionally equipped with the ripper, (3-tooth or 1-tooth available),u-shovel, angle blade, air conditioning, rear ripper, ROPS frame, forest cab,etc.

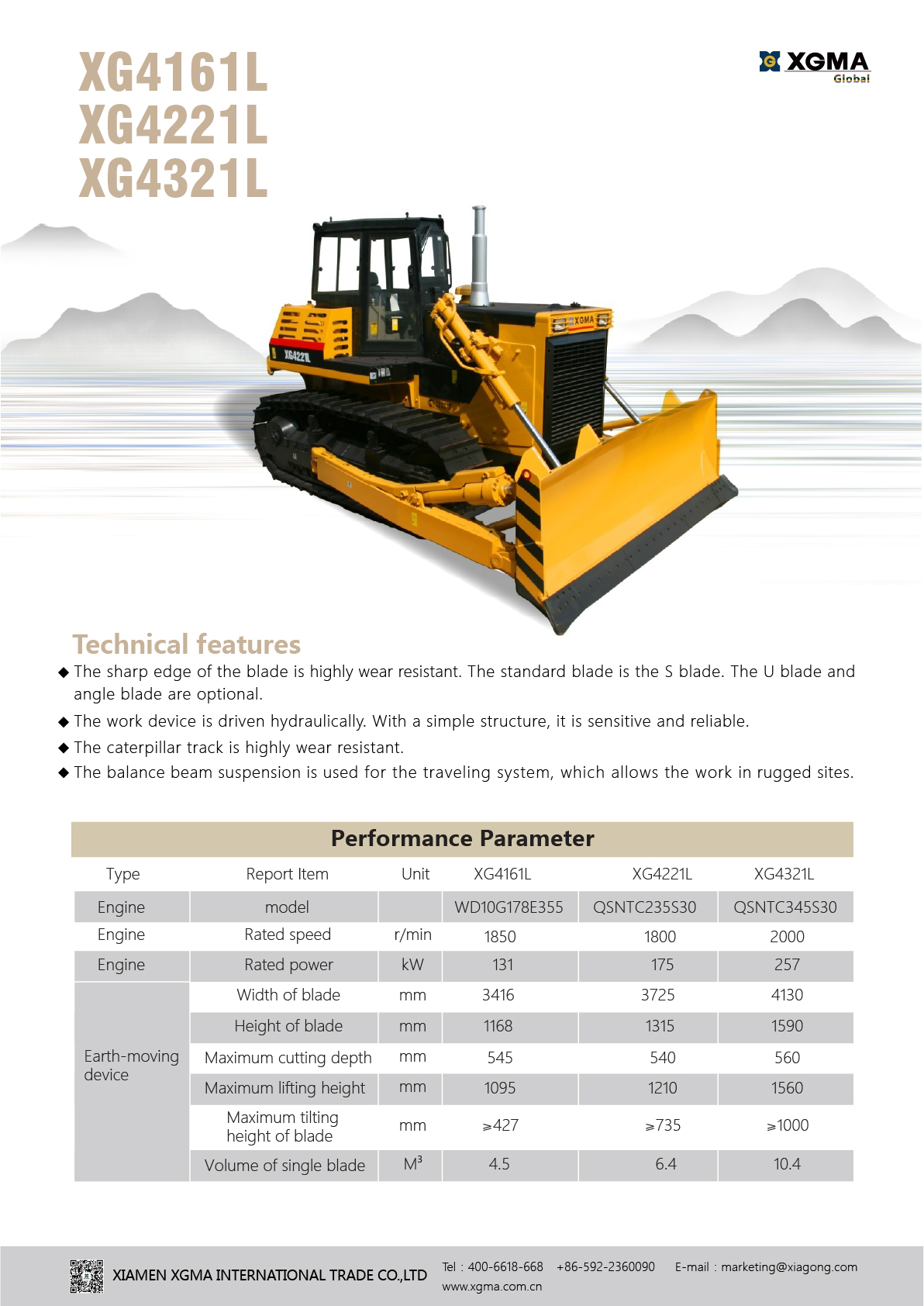

Specification

Description Unit XG4161L XG4221L XG4321L
Engine Model type Weichai WD10G178E25 Cummins NT855-C280 Cummins NTA855-C360
Rated speed rpm 1850 1800 2000
Rated power kW 131 162 235
Fuel consumption g/kW.h 223 212 213
Travel
       Speed
Forward I km/h 0~3.8 0~3.6 0~3.6
II km/h 0~6.6 0~6.5 0~6.6
III km/h 0~10.6 0~11.2 0~11.5
Reverse I km/h 0~4.9 0~4.3 0~4.4
II km/h 0~8.5 0~7.7 0~7.8
III km/h 0~13.6 0~13.2 0~13.5
Work
       Equipment
Blade height mm 1168 1315 1590
Blade width mm 3416 3725 4130
Max. depth mm 545 540 560
Max. lift mm 1095 1210 1560
Max. tilt adjustment mm ≥400 ≥735 1000
Pitch adjustment   55 55 55
Ripper
       (Optional)
Teeth   3 1 or 3 1 or 3
Max. digging depth mm 572 666(3 teeth) 842(3 teeth)
Max. lift mm 702 555(3 teeth) 883(3 teeth)
Weight kg 1709 2900(3 teeth) 5350(3 teeth)
Specification Min. ground clearance mm 400 405 500
Ground pressure Mpa 0.069 0.077 0.104
Min. turning radius mm 3100 3300 3940
Grade ability ° 30 30 30
Operating weight kg 17100 23450 34390
Productivity m3/h 247 330 480
Overall
       Dimensions
       (LxWxH)
Basic mm 5188x3416x3060 6510x3725x3325 6603x4130x3708.5
With ripper and ROPS mm 6215x3416x3060 6793x3725x3400 8916×4130×3708.5(1tooth)
       8586×4130×3708.5(3teeth)
