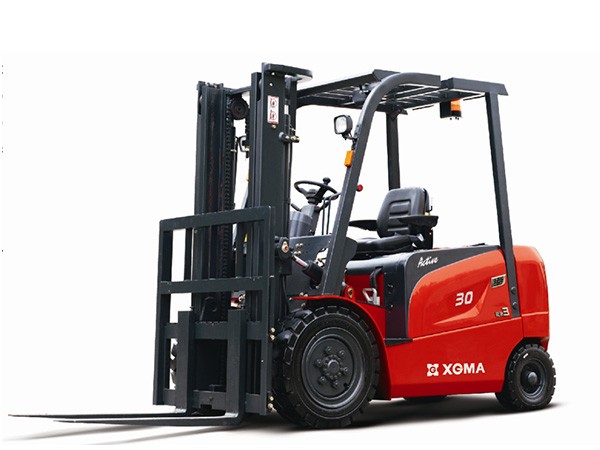

1."1.6~3.5T electric ac forklifts adopt new maintenance-free ac motor,it has many features, such as: simple structure, high efficiency, no carbon brush and free maintenance etc. All the features make the cost of preventive and maintenance cheaper. 1.6~3.5T electric ac forklifts equip with large battery (80V/500Ah), trustworthy quality and long continuous working time. 2.The same safety design concept as XGMA diesel forklift,1.6~3.5T electric ac forklifts equip with wide-view mast,high strength overhead guard and superior design frame. 3.Electric forklift truck is widely used in cold storage,fresh-keeping storehouse and other places of logistics. It is suitable for working in indoor, the cabin, trunk, such as confined space, as well as using in the field tobacco, food, textile, printing and other textile industry."
| Description | Unit | CPD16 | CPD20-C | CPD20 | CPD25 | CPD30 | CPD35 | ||
| XG516B-A5 | XG520B-A5C | XG520B-A5 | XG525B-A5 | XG530B-A5 | XG535B-A5 | ||||
| Summary | Power Type | lead-acid battery | lead-acid battery | lead-acid battery | lead-acid battery | lead-acid battery | lead-acid battery | ||
| Rate capacity | kg | 1600 | 2000 | 2000 | 2500 | 3000 | 3500 | ||
| Load center distance | mm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Mast lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Free lifting height | mm | 110 | 110 | 140 | 140 | 145 | 150 | ||
| Mast tilt angle(front/rear) | ° | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Length（ With standard fork ） | mm | 3040 | 3250 | 3439 | 3439 | 3600 | 3665 | ||
| Width | mm | 1100 | 1100 | 1220 | 1220 | 1220 | 1220 | ||
| Mast height (retracted) | mm | 2105 | 2105 | 2080 | 2080 | 2100 | 2160 | ||
| Overhead guard height | mm | 2130 | 2130 | 2130 | 2130 | 2150 | 2150 | ||
| Fork（L×W×H） | mm | 900×100×30 | 1070×122×40 | 1070×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | ||
| Min. turning radius | mm | 1970 | 2010 | 2070 | 2070 | 2210 | 2290 | ||
| Min ground clearance at full load | mm | 120 | 120 | 125 | 125 | 125 | 125 | ||
| Tire type | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | pneumatic | |||
| Wheel(X=driving wheel) | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | |||
| Performance | Max. travel speed (idle load) | km/h | 14 | 14 | 15 | 15 | 15 | 15 | |
| Lifting speed at full load | mm/s | 290 | 275 | 280 | 260 | 275 | 245 | ||
| Max.gradeability | ° | 15 | 15 | 16 | 15 | 15 | 15 | ||
| Deadweight | kg | 3000 | 3400 | 4050 | 4200 | 5000 | 5450 | ||
| Storage Battery | Voltage/Capacity | V/Ah | 48/420 | 48/450 | 48/600 | 48/600 | 80/500 | 80/500 | |
| Hydraulic Oil Tank Volume | L | 35 | 35 | 45 | 45 | 45 | 45 | ||
| Motor | Driving | Horsepower | kW | 8.0(AC) | 8.0(AC) | 11.1（AC） | 11.1（AC） | 16.6（AC） | 16.6（AC） |
| Lifting | Horsepower | kW | 7.5(DC) | 7.5(DC) | 10.5（DC） | 10.5（DC） | 13（DC） | 13（DC） | |
| Manufacturer/Model | China | China | China | China | China | China | |||
