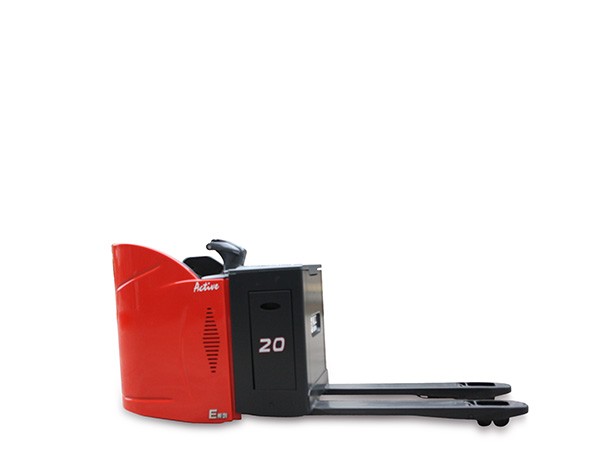

1.American imported CURTIS control system enables the machine to perform flexibly under various working conditions, and makes the machine the best efficiency of energy utilization. 2.When the machine is turning direction, the bent-way control technology will lower the travel speed automatically to greatly eliminate the possibility of side rolling because of the high turning speed. 3.Three sets of independent brake system improves the machine safety. 4.The multi-functional handle meets ergonomics, it is easy and comfortable to operate. 5.The reliable tandem type loading has stronger bearing capacity. 6.The specific vertical driving prevents the machine from dust, moisture erosion. It has better cooling performance which is good for long-hour working.
| Description | Unit | XG520T-W01TE | XG530T-W01TE | XG540T-W01TE |
| Power type | Electric | |||
| Operation mode | Stand-on | |||
| Rated load | kg | 2000 | 3000 | 4000 |
| Load center distance | mm | 600 | ||
| Tire type | PU | |||
| Tire spec.front | φ80×70 | φ80×110 | ||
| Tire spec.rear | φ215×75 | |||
| Tire spec.Universal wheel | φ100×40 | φ150×50 | ||
| Number of tires front/rear(X=driving) | 4/1X+2 | |||
| Max.handel height | mm | 1330 | ||
| Amount of Max.lifting height | mm | 120 | ||
| Min.ground clearance | mm | 85 | ||
| Total length pedal unfolded/extracted | mm | 2310/1907 | 2405/2002 | |
| Wheel base | mm | 1468 | 1550 | 1495 |
| Mast spec. | mm | 1150/175/75 | 1150/205/75 | |
| Total width | mm | 730 | 850 | |
| Fork distance(outside) | mm | 685 | ||
| Fork distance(inside) | mm | 335 | 275 | |
| Wheel track front/rear | mm | 510/500 | 510/618 | 480/618 |
| Pedal width | mm | 547 | ||
| Turning radius radal unfolded/retracted | mm | 2157/1762 | 2240/1845 | 2185/1790 |
| Passage width(800×1200pallet) | mm | 2812/2417 | 2895/2500 | 2870/2475 |
| Passage width(1000×1200pallet) | mm | 2902/2507 | 2985/2590 | 2955/2560 |
| Grade ability full/no load | % | 6/10 | 3/8 | |
| Drive motor type | AC | DC | AC | |
| Power of drive motor | kw | 1.5 | 2.8 | |
| Lifting motor type | DC | |||
| Power of lifting motor | kw | 2.2 | 2 | |
| Battery voltage/capacity | V/Ah | 24/210 | 24/280 | |
| Battery weight | kg | 200 | 250 | |
| Dead weight(with battery) | kg | 630 | 640 | 660 |
| Steering type | Mechanical | |||
| Brake type | Electro-magnetic | |||
