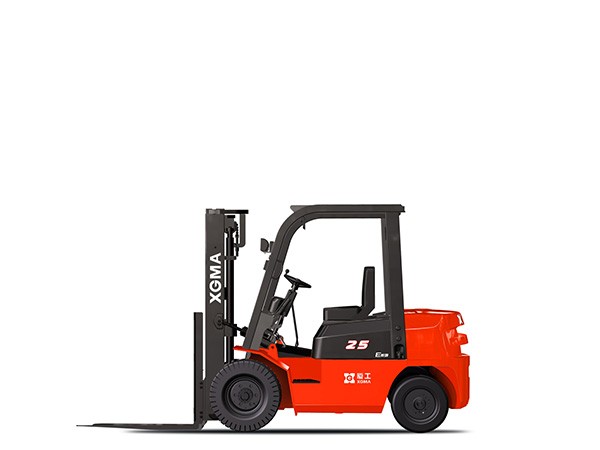

1.The powerful engine, in combination with a stable high-efficiency transmission system, takes full advantage of its power and torque output. 2.All supporting components employ the reliable, technically-mature, market-proven and high-quality hydraulic elements specially designed for various working conditions. 3.The deliberate wide-view mast design focuses on the robustness and high interior quality to ensure safer operation and a wider front view. 4.The unique charm of XGMA forklift is materialized from various details, such as the smart streamline engine hood, compact flexible body and reliable firm overhead guard.
| Description | Unit | CPCD20 | CPCD25 | CPCD30 | CPCD35 | ||
| XG520-DT5 | XG525-DT5 | XG530-DT5 | XG535-DT5 | ||||
| Dimensions | Load centers distance | mm | 500 | 500 | 500 | 500 | |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | ||
| Free lifting height | mm | 140 | 140 | 145 | 150 | ||
| Tilt angle of mast | α/β | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Total length | mm | 3650 | 3650 | 3820 | 3860 | ||
| Total width | mm | 1155 | 1155 | 1220 | 1220 | ||
| Height with mast not lifted | mm | 2070 | 2070 | 2100 | 2160 | ||
| Fork (L×W×H) | mm | 1070×122×40 | 1070×122×40 | 1070×125×45 | 1070×125×50 | ||
| Suspension distance(front) | mm | 475/485 | 475/485 | 475/515 | 480/555 | ||
| Performance | Rated load | kg | 2000 | 2500 | 3000 | 3500 | |
| Min. turning radius | mm | 2200 | 2260 | 2400 | 2420 | ||
| Max. running speed (no load) | km/h | 20 | 20 | 20 | 20 | ||
| Lifting speed (full load) | mm/s | 530 | 530 | 450 | 360 | ||
| Max. gradeability | ° | 20 | 20 | 20 | 20 | ||
| Deadweight | kg | 3440 | 3765 | 4270 | 4550 | ||
| Tire | Front wheel | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-14PR | 28x9-15-14PR | ||
| Rear wheel | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-1OPR | 6.50-10-1OPR | |||
| Wheel track | Front | mm | 965 | 965 | 1000 | 1000 | |
| Rear | mm | 980 | 980 | 980 | 980 | ||
| Wheelbase | mm | 1650 | 1650 | 1760 | 1760 | ||
| Min. ground clearance | mm | 110 | 110 | 140 | 140 | ||
| Engine | Model | C490BPG | C490BPG | C490BPG | C490BPG | ||
| Rated power | kW | 40 | 40 | 40 | 40 | ||
| Rated speed | rpm | 2650 | 2650 | 2650 | 2650 | ||
| Max. torque | N.m | 160 | 160 | 160 | 160 | ||
| Max. speed | rpm | 1800-2000 | 1800-2000 | 1800-2000 | 1800-2000 | ||
| Transmission | Gear (F/R) | 1/1 | 1/1 | 1/1 | 1/1 | ||
