1.It can realize regular discharge under temperature between -4℃--60℃. The excellent low-temperature performance makes it more suitable for cold chain industry. 2.Under the normal condition of charging and discharging, after 4000 times of circular operation, the capacity keeps higher than 80%. The Battery’s service life can keep more than 10 years. 3.No need of fluid infusion and dust prevention kind of daily manual maintenance 4.The XGMA Third Generation Load Sensing Priority Hydraulic System is energy saving and highly efficient. The working efficiency can improve by 13.4%. 5.It is equipped with electronic smart cooling system to use in continuous working condition. It avoids the motors and controller from shutting down due to the thermal protection after long working hours.

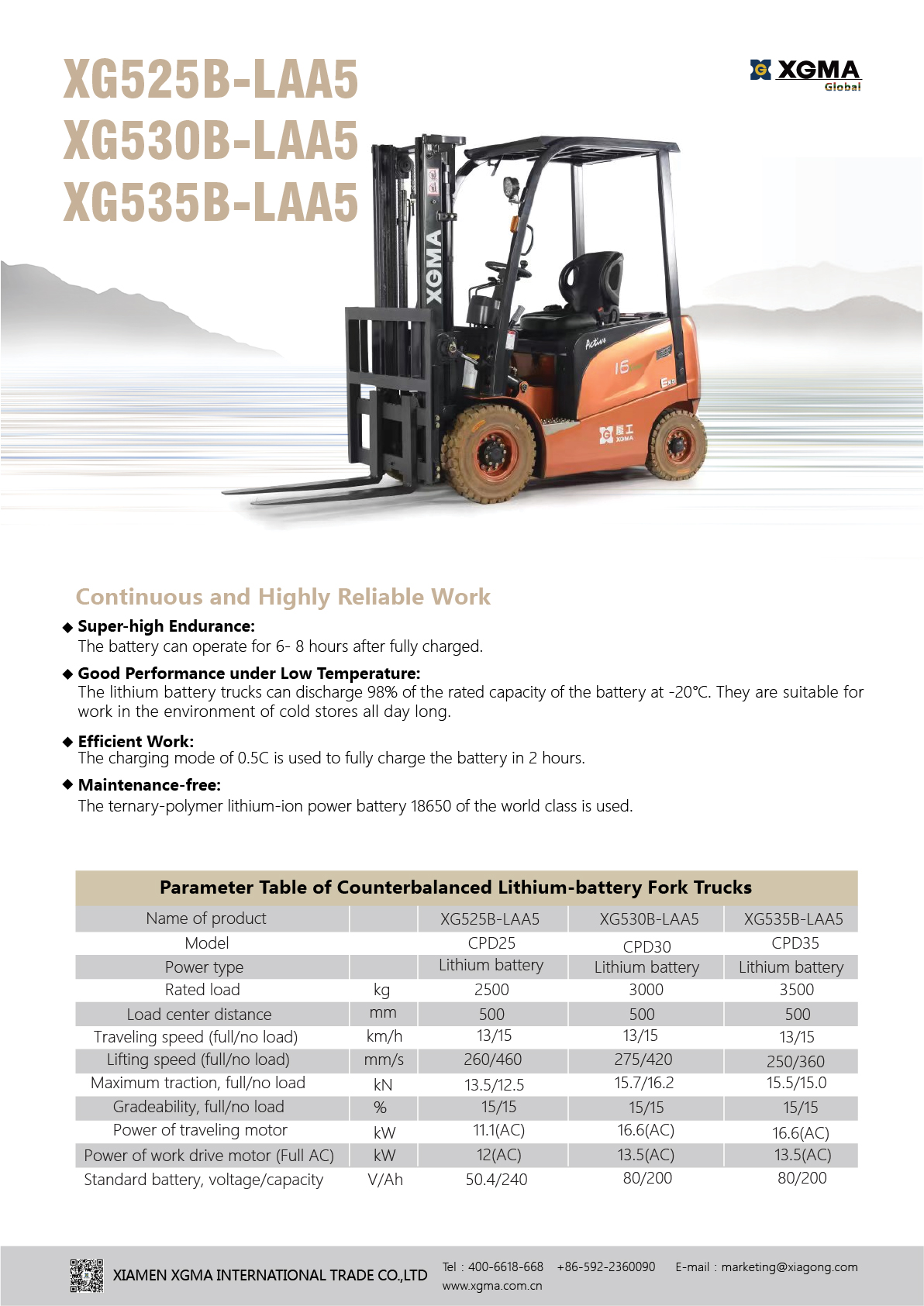

| Item | Description | Unit | XG516B-AA5 | XG520B-AA5 | XG525B-AA5 | XG530B-AA5 | XG535B-AA5 |
| CPD16 | CPD20 | CPD25 | CPD30 | CPD35 | |||
| Features | Power Type | Lithium battery | |||||
| Drive Mode | Sit Type | ||||||
| Rated Load | Kg | 1600 | 2000 | 2500 | 3000 | 3500 | |
| Load Center Distance | mm | 500 | |||||
| Lifting Height | mm | 3000 | |||||
| Weight | Deadweight | Kg | 3000 | 4050 | 4250 | 5000 | 5450 |
| Battery Weight | Kg | 145 | 270 | ||||
| Deadweight without Battery | Kg | 2855 | 4050 | 4250 | 4730 | 5450 | |
| Dimension | Front Suspension | mm | 425 | 470 | 475 | 480 | |
| Wheelbase | mm | 1370 | 1500 | 1680 | |||
| Mast Tilt Angle (Forward/backward) | ° | 6/12 | |||||
| Mast Static Height | mm | 2105 | 2080 | 2080 | 2100 | 2180 | |
| Free Lifting Height | mm | 110 | 140 | 145 | 150 | ||
| Max. Height when lifting | mm | 4065 | 4129 | 4235 | |||
| Overhead Guard Height | mm | 2130 | 2150 | ||||
| Seat Height | mm | 130 | |||||
| Driver's Height | mm | 1040 | 1110 | 1130 | |||
| Overall Length (till fork surface) | mm | 2080 | 2369 | 2530 | 2595 | ||
| Overall Width | mm | 1100 | 1200 | 1220 | |||
| Fork Dimension (L*W*T) | mm | 960×100×30 | 1070×122×40 | 1070×125×45 | 1070×125×50 | ||
| Min. Ground Clearance (full load) | mm | 120 | 125 | ||||
| Min. Truning Radius | mm | 1970 | 2070 | 2210 | 2290 | ||
| Tire | Tire type | Pneumatic | Solid | ||||
| Qty. of Tires (front/rear) | 2X/2 | ||||||
| Front tire spec. | 6.50-10-10PR | 7.00-12-12PR | 28X9-15-14PR | 28X9-15 | |||
| rear tire spec. | 5.00-8-10PR | 18X7-8-14PR | 18X7-8-14PR | 18X7-8 | |||
| Performance | Travel Speed (full load/no load) | mm/s | 12/13 | 13/15 | |||
| Lifting Speed (full load/no load) | mm/s | 275/420 | 280/460 | 260/460 | 275/420 | 250/360 | |
| Max. Traction Force (full load/no load) | KN | 13.8/8.21 | 14.1/13.4 | 13.5/12.5 | 15.7/16.2 | 15.5/15.0 | |
| Gradeability (full load/no load) | % | 15/15 | |||||
| Drive System | Travel Motor Power | KW | 8 | 11.1 | 16.6 | ||
| Working Motor Power | KW | 8 | 12 | 13.5 | |||
| Standard Battery (voltage/capacity) | V/Ab | 50.4/200 | 50.4/240 | 80/200 | |||
